Hafnium Dioxide (HfO₂) Target Sputtering Guide

1. Introduction & Material Fundamentals

Hafnium Dioxide (HfO₂) is a high-k dielectric material with exceptional thermal stability, chemical inertness, and a wide bandgap (~5.7 eV). High-purity HfO₂ sputtering targets (99.99% (4N) to 99.999% (5N) purity) are essential for PVD magnetron sputtering, enabling the deposition of high-quality thin films for advanced semiconductor devices, memory technologies, and optical coatings.

Core Properties of HfO₂ Targets

• Purity Range: 4N–5N (99.99–99.999%)

• Density: ≥9.68 g/cm³

• Crystal Structure: Monoclinic (room temperature); tetragonal/cubic (high temperature)

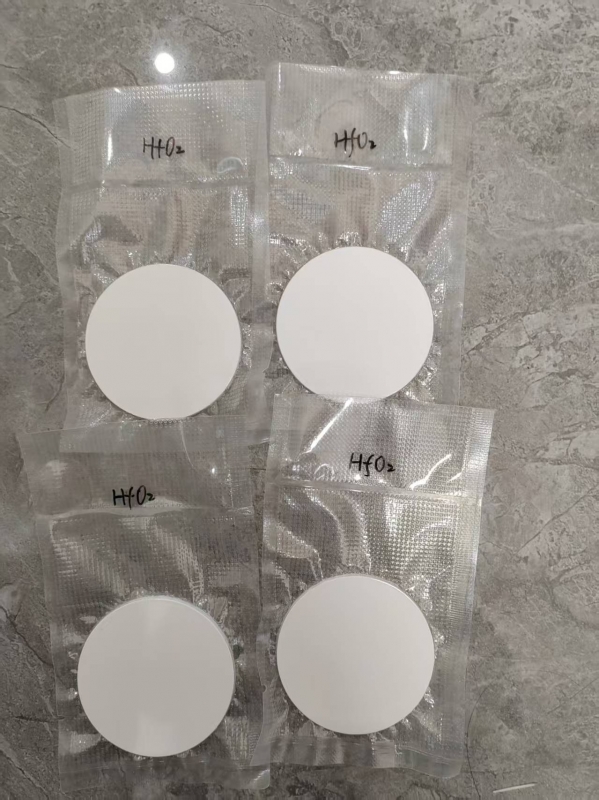

• Typical Forms: Planar disks (Ø1–21 inch), thickness 2–10 mm; optional Cu/Ti bonding for thermal dissipation

• Thermal Characteristics: High melting point (~2780°C); low thermal conductivity; prone to arcing if not properly conditioned

•


2. Pre-Sputtering Preparation

2.1 Target Handling & Installation

• Handling Protocol: Wear powder-free nitrile gloves to prevent hydrocarbon contamination; avoid physical contact with the target surface.

• Cleaning Procedure: Wipe the target surface with ultra-pure isopropyl alcohol (IPA, 99.999%) and dry with high-purity nitrogen gas (N₂, 99.999%).

• Mounting: Secure the target to the cathode cathode; ensure uniform contact with the backing plate (if bonded) to optimize heat dissipation.

• Chamber Sealing: Perform a thorough leak check; confirm all vacuum flanges and O-rings are properly seated.

2.2 Substrate Preparation

• Cleaning Sequence (standard for Si, glass, or sapphire substrates):

1. Ultrasonic bath in acetone: 5 minutes

2. Ultrasonic bath in IPA: 5 minutes

3. Rinse with deionized (DI) water (18.2 MΩ·cm)

4. Blow-dry with high-purity N₂ gas

• Loading: Place substrates on the sample holder; adjust target-to-substrate distance to 10–18 cm (typical for uniform deposition).

2.3 Vacuum System Setup

• Pumping: Evacuate the chamber to a base pressure ≤ 5×10⁻⁶ Torr (6.7×10⁻⁴ Pa) using a turbo-molecular pump (TMP) backed by a scroll pump.

• Leak Test: Monitor pressure rise; ensure the rate is < 1×10⁻⁵ Torr/h to eliminate air/moisture ingress.

• Purge: Flush the chamber with high-purity argon (Ar, 99.999%) 1–2 times to remove residual gases.

•


3. Sputtering Parameters (DC/RF Magnetron)

3.1 Process Gases

• Primary Gas: High-purity Ar (99.999%) for plasma generation

• Reactive Gas: Oxygen (O₂, 99.999%) – required for stoichiometric HfO₂ deposition; flow rate controlled via mass flow controller (MFC)

3.2 Recommended Deposition Settings
